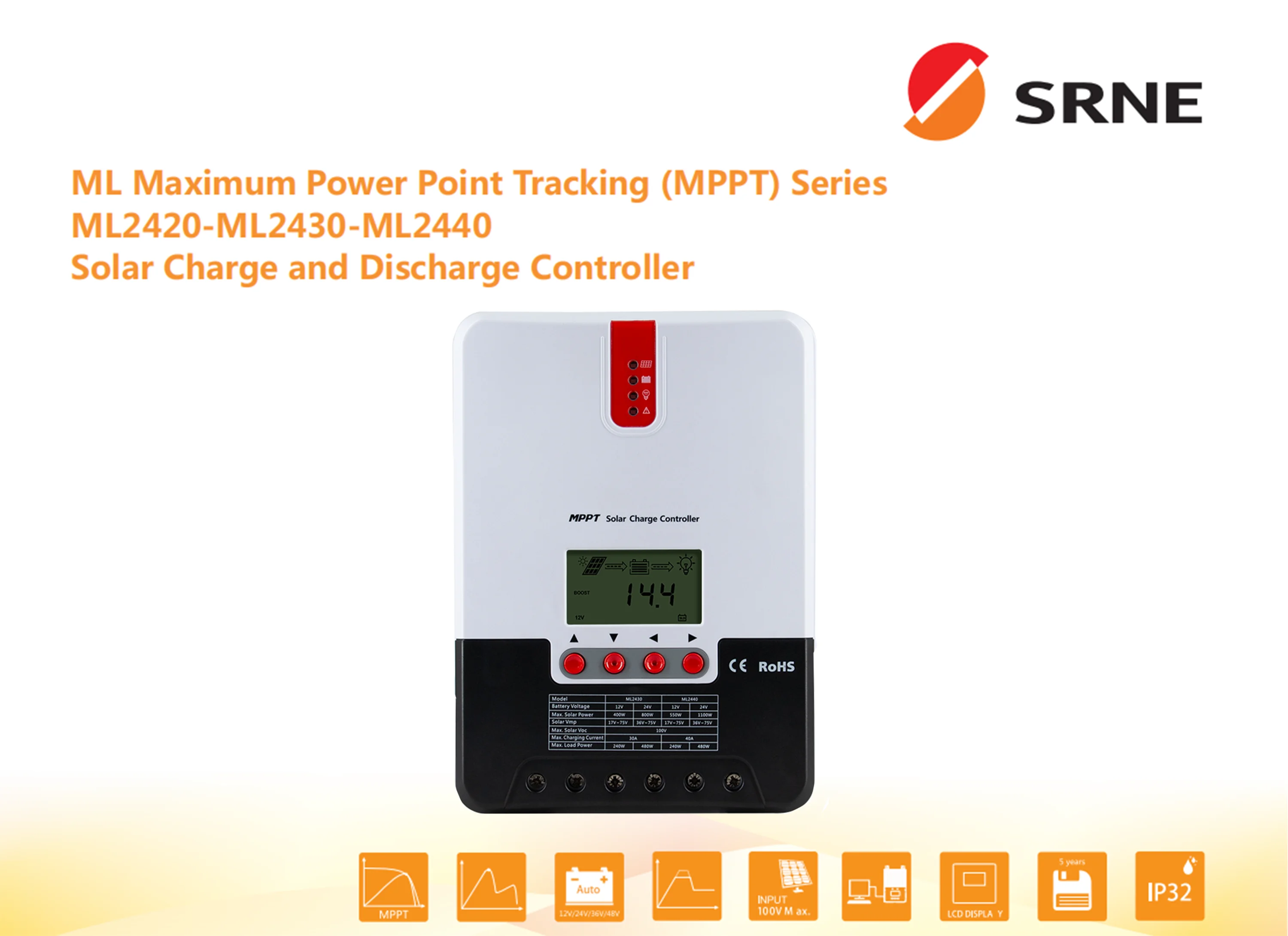

MPPT Сонячний контролер SRNE ML2440, 12/24 V, 40 A (AGM/LiFePO4/Li-ion)

ТЕХНІЧНІ ХАРАКТЕРИСТИКИ:

Напруга системи - 12/24V (auto)
Максимальний струм заряду - 40А
Напруга акумулятора — 9V-35V
Максимальна потужність PV - 500W(12V) / 1000W(24V)
Максимальна напруга PV - 100V(25°C), 90V(-25°C)
Струм навантаження - 20A
Власне споживання - 0.7-1.2 мА
ККД пристрою - 98%
ККД MPPT - 99%
Інтерфейс - RS232
Зовнішні габаритні розміри - 238х173х72.5 мм.
Установлювальні розміри - 180х147 мм.
Вага - 2000 г.
Ступінь захистів - IP32
Температура експлуатації - -35 to +45,°C
Допустима вологість (без утворення конденсату) - 90%

Опціонально:

1 Адаптер Bluetooth BT-1 ( +850 грн.)

Introduction：

1、This product can keep monitoring the solar panel's generating power and tracking the highest voltage and current values (VI) in real time, enabling the system to charge the battery in maximum power. It's designed to be used in off-grid solar photovoltaic systems to coordinate operation of the solar panel, battery and load, functioning as the core control unit in off-grid photovoltaic systems.

This product features an LCD screen which can dynamically display the operating status, operating parameters, controller logs, control parameters, etc. Users can conveniently check parameters by the keys, and modify control parameters to cater to different system requirements.

2、The controller utilizes standard Modbus communication protocol, making it easy for users to check and modify system parameters on their own. Besides, by providing free monitoring software, we give users the maximum convenience to satisfy their varied needs for remote monitoring.

3、With comprehensive electronic fault self-detecting functions and powerful electronic protection functions built inside the controller, component damage caused by installation errors or system failures can be avoided to the greatest extent possible.

Feature：

• With the advanced dual-peak or multi-peak tracking technology, when the solar panel is shadowed or part of the panel fails resulting inmultiple peaks on the I-V curve, the controller is still able to accurately track the maximum power point.

• A built-in maximum power point tracking algorithm can significantly improve the energy utilization efficiency of photovoltaic systems,and raise the charging efficiency by 15% to 20% compared with the conventional PWM method.

• A combination of multiple tracking algorithms enables accurate tracking of the optimum working point on the I-V curve in an extremely short time.

• The product boasts an optimum MPPT tracking efficiency of up to 99.9%.

• Advanced digital power supply technologies raise the circuit's energy conversion efficiency to as high as 98%.

• Charging program options are available for different types of batteries including gel batteries, sealed batteries, open batteries, lithium batteries, etc.

• The controller features a limited current charging mode. When the solar panel power exceeds a certain level and the charging current is larger than the rated current, the controller will automatically lower the charging power and bring the charging current to the rated level.

• Instantaneous large current startup of capacitive loads is supported.

• Automatic recognition of battery voltage is supported.

• LED fault indicators and an LCD screen which can display abnormality information help users to quickly identify system faults.

• Historical data storage function is available, and data can be stored for up to a year.

• The controller is equipped with an LCD screen with which users can not only check device operating data and statuses, but also modify controller parameters.

• The controller supports standard Modbus protocol, fulfilling the communication needs of various occasions.

• The controller employs a built-in over-temperature protection mechanism. When temperature surpasses the set value, the charging current will decline in linear proportion to the temperature so as to curb the temperature rise of the controller, effectively keeping the controller from being damaged by overheat.

• Featuring a temperature compensation function, the controller can automatically adjust charging and discharging parameters in order to extend the battery's service life.

• TVS lighting protection.

Characteristics：

1. Charging indicator

2.Battery indicator

3.Load indicator

4.Abnormality indicator

5.LCD screen

6.Operating keys

7.Installation hole

8.Solar panel "+"interface

9.Solar panel "-"interface

10.Battery "+" interface

11.Battery "-" interface

12.Load "+" interface

13.Load "-" interface

14.External temperature sampling interface

15.RS232 communication interface

Sepecification：

Function:

1、Fast charging

2、Sustaining charging

3、floating chargin

4、Equalizing charging

Display：

Item Pictures：
